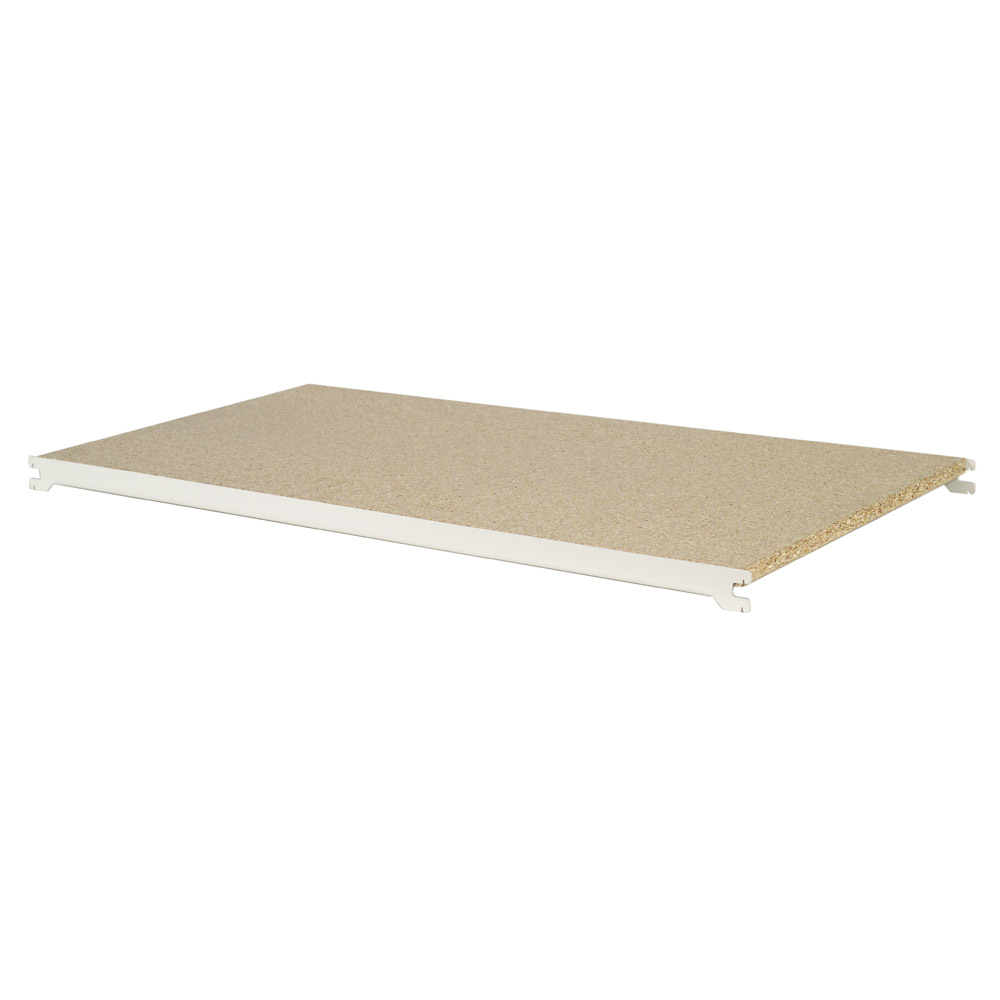

Individual shelf levels for our popular E-Z-Rect Trimline shelving system with either chipboard or melamine boards. Use these to add extra levels to your existing racks or to create your own configurations. The low profile yet sturdy steel beams minimise wasted space, allowing you to store more goods.
Installation is easy, simply locate into the slots of the Trimline frames (sold separately) and lock into place with the tap of a mallet. Shelves can be positioned exactly where you need them at 25mm height intervals.

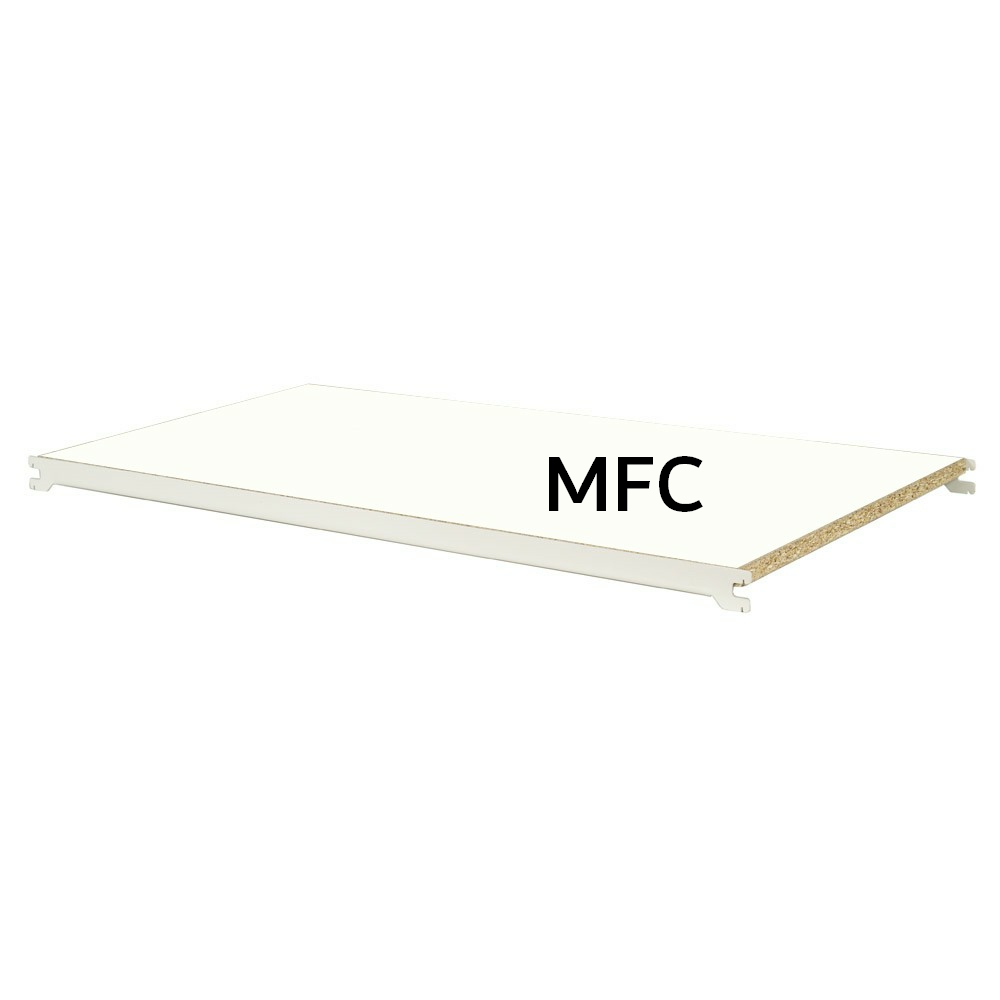

Note: Melamine (MFC) boards will typically be supplied without edging although some may have edging on the short sides.
- Widths: 915, 1000 or 1220mm (all clear entry sizes)
- 5 shelf depth options
- 130Kg - 175Kg Shelf loads
- 15mm chipboard or melamine deck*
- Slim shelf beams
- Soft grey finish
- Quick installation, no nuts or bolts required
*Note: For added strength, 18mm thick chipboard is supplied for all 762mm deep shelves
Delivery Cost
Delivery is FREE for orders over £500.00 ex-VAT
Smaller orders are subject to a charge according to the goods value (ex VAT), as below.
| Goods Value (ex. VAT) | Delivery Charge (ex. VAT) | |
| £0 - £99.99 | £15.00 | |
| £100 - £149.99 | £20.00 |
| £150 - £249.99 | £30.00 |
| £250 - £349.99 | £35.00 | |
| £350 - £499.99 | £40.00 | |
| £500+ | FREE | |
The above rates are for mainland UK excluding Northern Scotland, The Highlands and all Islands.
Delivery times vary, every product will state an estimated lead time which we will endeavour to meet, we will keep you informed should there be any delays. Some items like lockers, cupboards, mobile shelving etc.. are not held in stock and are made to order. All delivery times are estimates. If you need an item delivered urgently or by a set date please call us in advance of placing your order.
Deliveries are made during normal working hours (typically 8.30am - 5.30pm). Goods will be dropped off at KERBSIDE and will require a signature. If you need an item delivered urgently or by a set date please call us in advance of placing your order.
Important note: Our Longspan, Type 1 and Trimline racking systems are normally delivered on large pallets, components (especially those over 2m in length) can be difficult to offload from the delivery lorry without a fork lift truck and may require hand-unloading. Please ensure that you are capable of off-loading and handling these large, heavy goods before ordering. If you have any questions regarding this please call us on 01993 779494. These are also typically delivered on large vehicles, if there are any access limitations to your site please let us know in advance.
Delivery Areas
Mainland UK – England, Wales and Southern Scotland.
Other UK – Please call for a quote if you live in any of the following areas:
BT, IV, ZE, HS, KA27-28, KW, PA, IM, JE, GY, PO30-41, TR21-25, AB, PH17-26, PH30-44, PH49-50
Collection
Please call 01993 779494 if you would like to collect your order from our warehouse.
Sizing Guide: Medium Duty Trimline Shelving
To calculate the overall length of a shelving bay please add 40mm for each upright.
The table below shows the overall length of shelving runs in mm when using a single starter bay and subsequent add-ons. If you are unsure of how many units to buy to fit within a given space please call us on 01993 779494 to discuss your requirements.
For the overall depth of a shelving bay please add 25mm to the nominal size specified.
| | Overall Run Lengths (mm) |
| Shelf Width | 1 Bay | 2 Bays | 3 Bays | 4 Bays | 5 Bays | 6 Bays | 7 Bays | 8 Bays | 9 Bays | 10 Bays |
| 915mm | 995 | 1950 | 2905 | 3860 | 4815 | 5770 | 6725 | 7680 | 8635 | 9590 |
| 1000mm | 1080 | 2120 | 3160 | 4200 | 5240 | 6280 | 7320 | 8360 | 9400 | 10440 |
| 1220mm | 1300 | 2560 | 3820 | 5080 | 6340 | 7600 | 8860 | 10120 | 11380 | 12640 |
| 1525mm* | 1605 | 3170 | 4735 | 6300 | 7865 | 9430 | 10995 | 12560 | 14125 | 15690 |
| 1830mm* | 1910 | 3780 | 5650 | 7520 | 9390 | 11260 | 13130 | 15000 | 16870 | 18740 |
*1525 & 1830mm widths require heavy duty beams trimline (widespan)
